DSY5000X Inverted Optical Microscope B/G/ V/UV Filter Upright And Inverted Microscope – LT/DSY5000X

S/0.00

 Model:  LT/DSY5000X  Type:  Fluorescence Microscope
 Objective:  10X/20X/40X/20X Phase Contrast Objective  Eyepiece:  WF10X20
 Nosepiece:  5Holes  Light Source:  6V 30W
 Condenser:  NA 0.30  Application:  Hospital Education Laboratory
 Stage:  Attachable Mechanical Stage  Power Supply:  AC100-240V/DC12V
 Color:  White And Black  Packing Size:  67*54*30mm+50*50*34mm



Cotizar Producto
Categoría:

Descripción

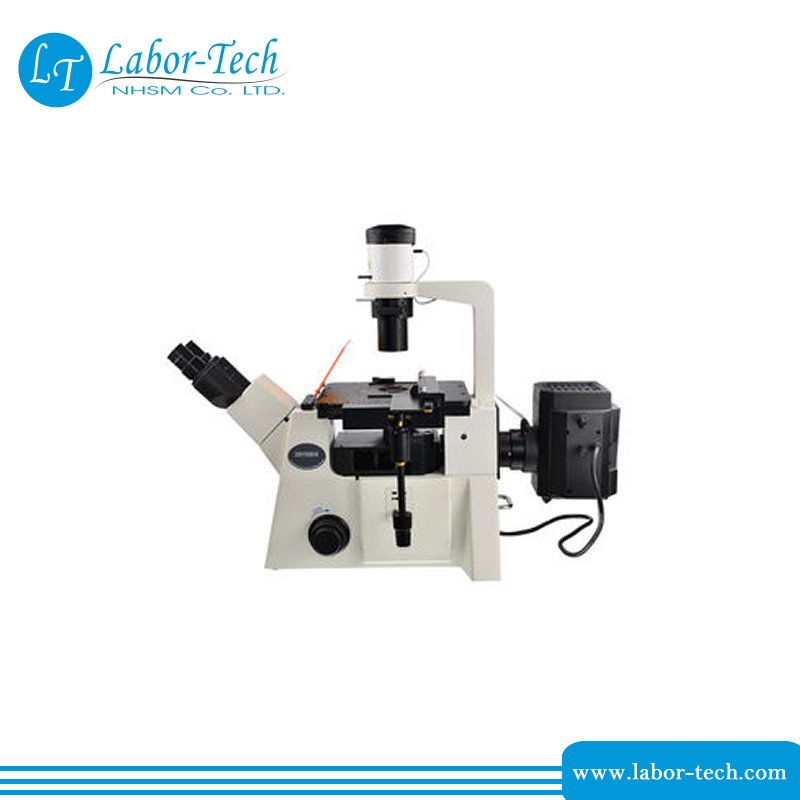

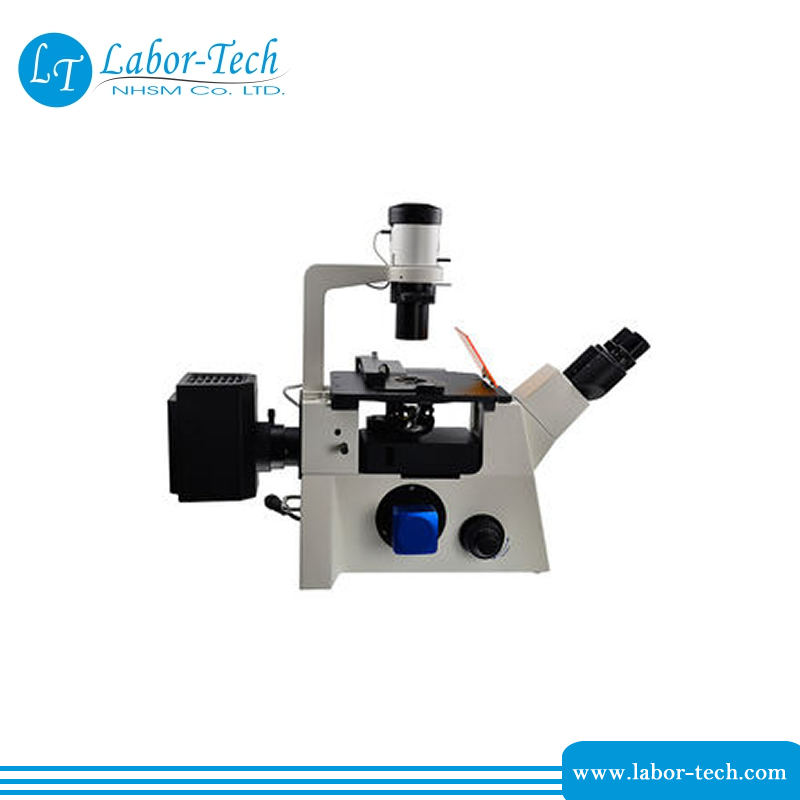

LT/DSY5000X Inverted Optical Microscope B/G/ V/UV Filter Upright And Inverted Microscope
Hot Sell LT/DSY5000X Inverted Fluorescence Optical Microscope with B/G/ V/UV Filter

TECHNICALSPECIFICATIONS

EYEPECE(S)

• Extended EWF 10x/20 mm eyepieces, Ø 30.0 mm tubes.
• Eyepieces can be secured to the tubes

HEADS

• Binocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 48 to 75 mm and is equipped with diopter adjustment(s).
• The trinocular head comes with a Ø 30 mm photo port.
• An optional ergonomic titling head (0:100 50:50) are also available (optional)

NOSEPIECE
• Revolving and reversed nosepiece for 5 objectives

OBJECTIVES

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Infinity plan achromatic LWD objectives 4x/0.13 (optional) / 10x/0.25/ 20x/0.40/ S40x/0.60/ S60x/0.70 (optional)

Infinity plan achromatic LWD phase contrast objectives 4x/ 0.13 (optional) / 10x/0.25 (optional) / 20x/0.40/ S40x/0.60 (optional)

FILTERS

B/G/UV/V fluorescence filters of Chroma.

B/G/UV/V fluorescence filters of China.(Optional)

STAGE

• Attachable mechanical stage

•Mechanical stage 180 x 155 mm ceramic stage with integrated 80 x 50 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective

CONDENSER FOR BRIGHT FIELD

• ELWD condenser NA 0.30, LWD 72mm, it will be 150mm after taking down the condenser.

FOCUSING

• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control

ILLUMINATION

• 6V 30W/ 100W Osram mercury lamp/ 100W mercury lamp(optional) adjustable halogen illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
Other benefits of the DSZ2000X is the low energy consumption and a long operating lifetime
• The illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving
power of the optics. Also available for other models as an option

CONFIGURATION LIST

Order Code Item Model
LT/DSY 5000X
DSZ-JZ1 UCIS Infinity Independent Achromatic Optical System, Onepiece Structure, Stable and
Reliable		 •
MS1 Binocular Interpupillary Distance48-75mm Diopter adjustment ◦
MS1A Trinocular. Interpupillary distance 48-75mm Diopter adjustment •
E1020PA High Eye-point Plan Eyepiece WF10X/20mm ••
E1022PC High Eye-point Plan Eyepiece WF10X/22mm
E1022PC High Eye-point Plan Reticule Eyepiece WF10X/20mm ◦
CT3 Centering Telescope •
E1613PB High Eye-point Plan Eyepiece WF16X/13mm ◦ ◦
WB-L4C Infinity Long Distance Plan Achromatic Objective 4X ◦
WB-L10B Infinity Long Distance Plan Achromatic Objective 10X •
WB-L20C Infinity Long Distance Plan Achromatic Objective 20X •
WB-L4OB Infinity Long Distance Plan Achromatic Objective 40X •
WB-L60B Infinity Long Distance Plan Achromatic Objective 60X ◦
WB-LPHp4C Infinity Long Distance Plan Positive Phase-contrast Achromatic Objective 4X ◦
WB-LPHpl0B Infiniti Long Distance Plan Positive Phase-contrast Achromatic Objective 10X ◦
WB-LPHp20C Infiniti Long Distance Plan Positive Phase-contrast Achromatic Objective 20X •
WB-LPHp40B Infinity Long Distance Plan Positive Phase-contrast Achromatic Objective 40X ◦
WB-LPHn4C Infinity Long Distance Plan Negative Phase-contrast Achromatic Objective 4X ◦
WB-LPHnl0B Infinity Long Distance Plan Negative Phase-contrast Achromatic Objective 10X ◦
WB-LPHn20C Infinity Long Distance Plan Negative Phase-contrast Achromatic Objective 20X ◦
WB-LPHn40B Infinity Long Distance Plan Negative Phase-contrast Achromatic Objective 40X ◦
YG10A Two fiters Structure •
YG11 Three fiters Structure •
YG10-4000 UV Shield ◦
YGMK2KC-B UV Excitation Filter (made in China) ◦
YGMK2KC-G UV Excitation Filter (made in China) ◦
YGMK2KC-V UV Excitation Filter (made in China) ◦
YGMK2KC-UV UV Excitation Filter (made in China) ◦
YGMK2IC-B B Excitation Filter (chroma) •
YGMK2IC-G G Excitation Filter (chroma) •
YGMK2IC-V V Excitation Filter ((chroma) •
YGMK2IC-UV UV Excitation Filter (chroma) •
ZT5+ZTY5 Fixed Stage + Attachable Mechanical Stage •
5D-0022 Bracket holder (Φ65) ◦
5D-0023 Multi-functional Bracket holder (Φ54) •
5D-0031 Bracket (Φ35) ◦
1D-0022 96-well Plate Holder ◦
ZT5C Mechanical Stage. 180mmx155mm: movement range: 80mmx50mm ◦
ZT5-1000 Drop specimen holder(Φ110) ◦
ZT5-2000 Specimen Holder (for mechanical stage) •
ZQ580A Quintuple Nosepiece •
SGL5 LED Light (UP) ◦
PCB-LPHB Phase-contrast slide (Include10X, 20X/40X Phase contrast Ring) •
PCB-LPHC Phase-contrast slide (Include4X,10X. 20X/40X Phase contrast Ring) ◦
SGJ1-3000 6V 30W Halogen Lamp House •
SGJS-0023 Filter Holder •
LA1-0011 Blue Filter (Φ34) •
LU1-0011 Green Filter (Φ34) •
LH1-0011 Yellow Filter (Φ34) •
SX1 0.5X C-Mount ◦
SX5 0.25X C-Mount ◦
SX7 1X C-Mount •
JK-Nikon Adapter for Nikon DSLR ◦
JK-Cannon Adapter for Cannon DSLR ◦
BZ-0022B 6V 30W Halogen Lamp ◦ ◦ ◦
BZ-0022C 6V 30W Osram Halogen Lamp •
DQ5 6V 30W Halogen Lamp Power House •
BZ-0023 250V/3.15A Φ5X20 fuse •••
WJZ-DSZ2000 Dust Cover •
BZ2-0018 Φ2mm Allen screw driver •
BZ-0021 Power Cord •
BZ1-0016 Accessory Box •
