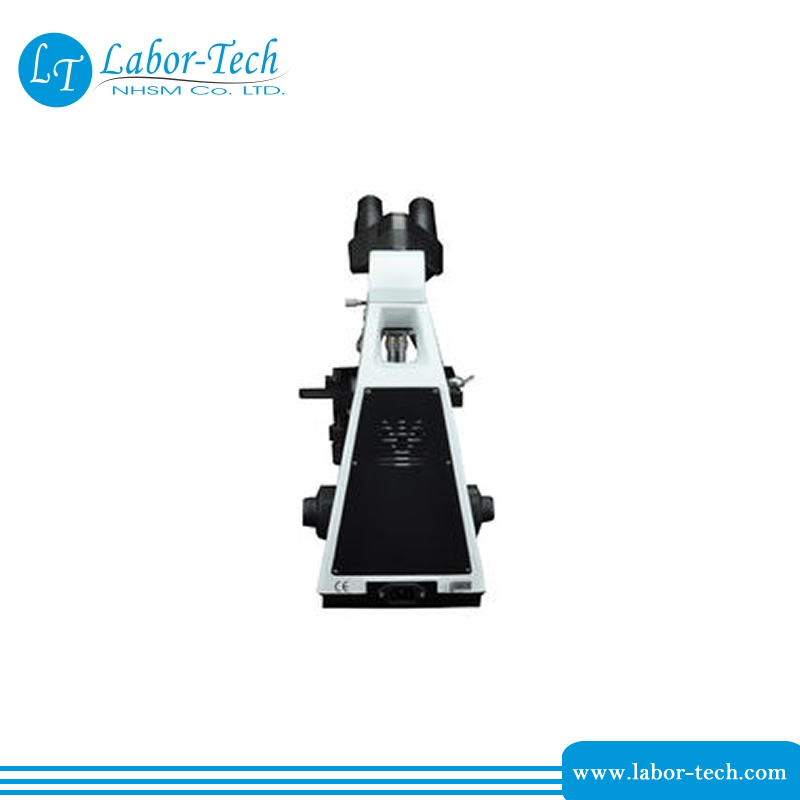

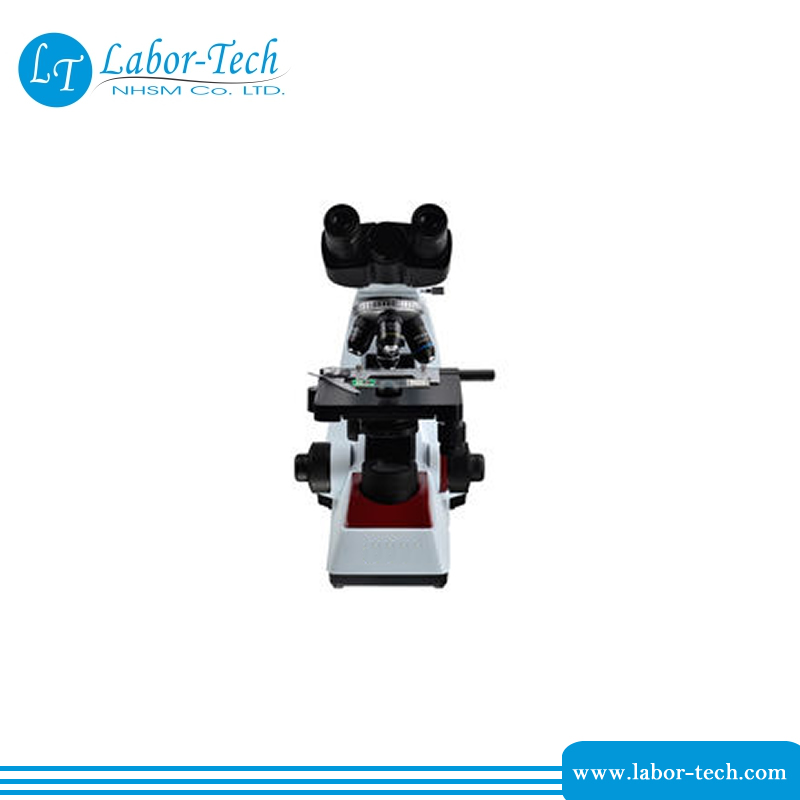

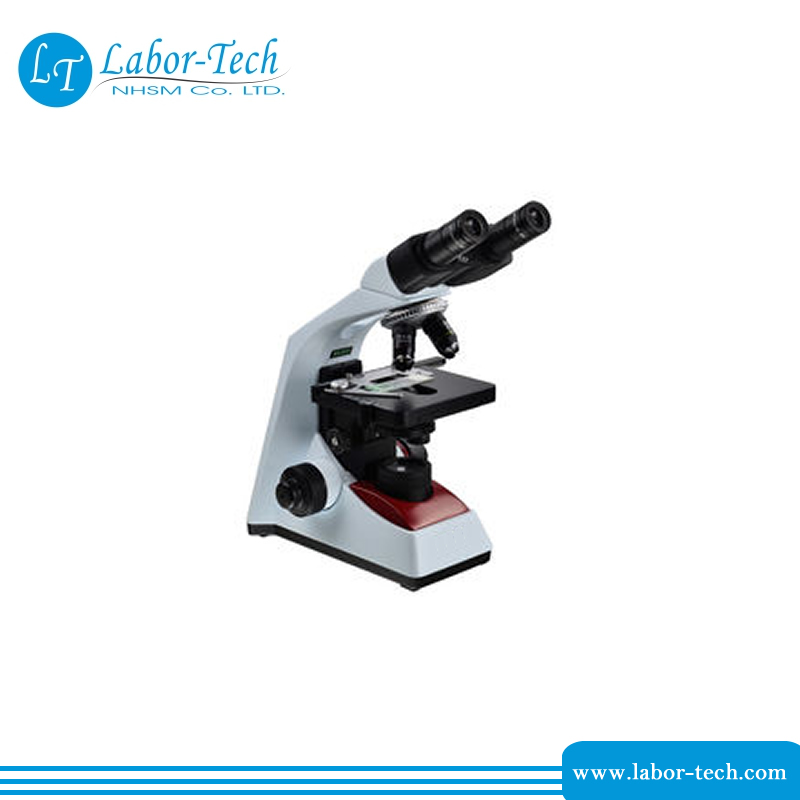

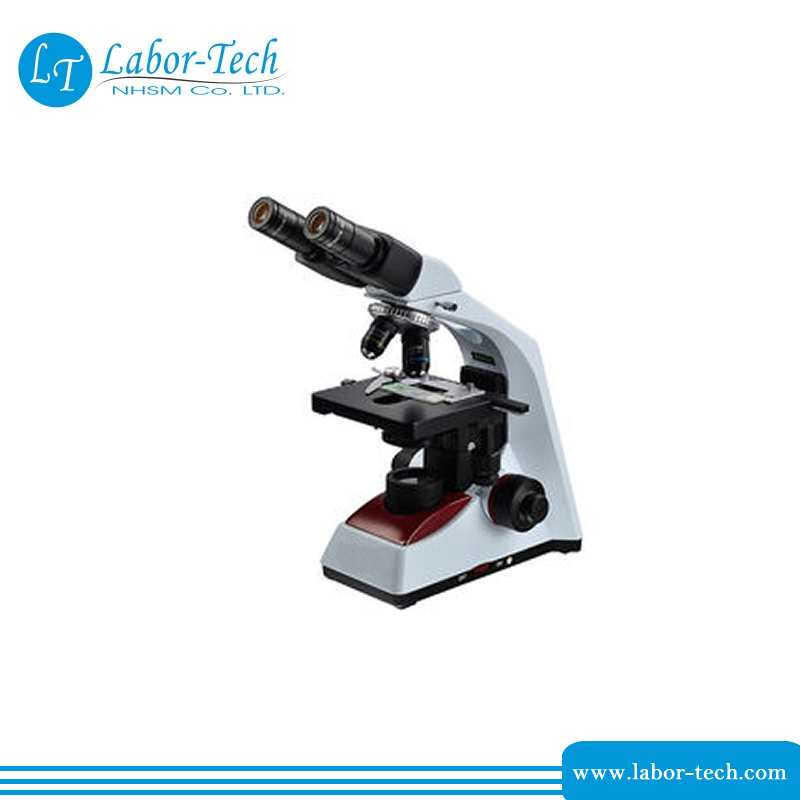

Finity Optical System Electronic Binocular Microscope With Halogen Lamp – LT/BS203

Descripción

Finity Optical System Electronic Binocular Microscope With Halogen Lamp
Finity Optical System WF10X/18mm Binocular Microscope With Halogm Lamp

TECHNICALSPECIFICATIONS

EYEPECE(S)

• Extended WF 10x/18 mm eyepieces, Ø 23.2 mm tubes.
• Eyepieces can be secured to the tubes

HEADS

•Brinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s).

NOSEPIECE

• Revolving and reversed nosepiece for 4 objectives

OBJECTIVES

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

•Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)

•Semi Plan Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)

•Plan Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)

STAGE

• 134 x 130 mm ceramic stage with integrated 77 x 48 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective

CONDENSER FOR BRIGHT FIELD

• The standard height adjustable Abbe N.A. 1.25 condenser for brightfield

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 2 μm per graduation, 100 μm per rotation
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.

ILLUMINATION

• 6V 20W adjustable illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.

CONFIGURATION LIST
